1280 Series

The 1280 Enterprise Series programmable indicator offers Unlimited Control and Infinite Possibilities.

The 1280 Enterprise is an innovative powerhouse, delivering uncompromising speed for today’s operations and expansive option for tomorrow’s requirements.

 The 1280 Enterprise is designed to withstand even the harshest environments, built with industrial-grade components and stainless steel NEMA Type 4X enclosures.

With a built-in web server, Ethernet TCP/IP, Wi-Fi, USB, Bluetooth and RS-232/485, you may never need to add an option card; however the 1280 is easily expandable with up to six smart option cards.

Use Wi-Fi Direct to connect wireless devices without accessing a customer’s network infastructure-enabling a fast and secure connection.

A highly customisable graphical user interface, the ability to power up to eight scales, and a lightning-fast processor takes multitasking to the next level.

• Main Features

  • Customizable color touchscreen with graphical user interface
  • User-defined softkeys, icons and graphics
  • Tactile keypad for scale operations, numeric entry and navigation
  • On-screen keyboard available during entry mode (or external keyboard)
  • Built-in web server for remote access, systems integration and data monitoring
  • Multi-language operation and text entry
  • Supports eight scales within five different kinds:
  • Analog load cell, multi-range/interval weighing
  • Total scale summing
  • Serial input scales
  • iQUBE² scales
  • Program scales
  • Six smart card slots for additional scale channels, serial ports, digital inputs and outputs, analog outputs and protocol interfaces
  • iRite™ Programming Software
  • Five built-in applications: Truck in/out, recipe storage, filling/dosing, counting, checkweighing
  • Customizable user programs with event-based functions
  • 150 built-in functions for common processes & data tables
  • Customize and transfer data via email, FTP server and networked printers
  • Display data with line charts or bar graphs
  • Dual-port assignments for weight tickets, credit cards, smart pass, HID readers, etc.
  • iRite reporting or iQUBE2 alerts
  • Email, USB, Ethernet TCP/IP, Wi-Fi Direct®, two serial ports RS-232 or RS-485
  • Alibi memory captures serial port transmissions
  • Four configurable data-stream formats for PC, printers and remote displays
  • 100 setpoints, 18 configurable setpoint types
  • Eight digital I/O for control and pulse count

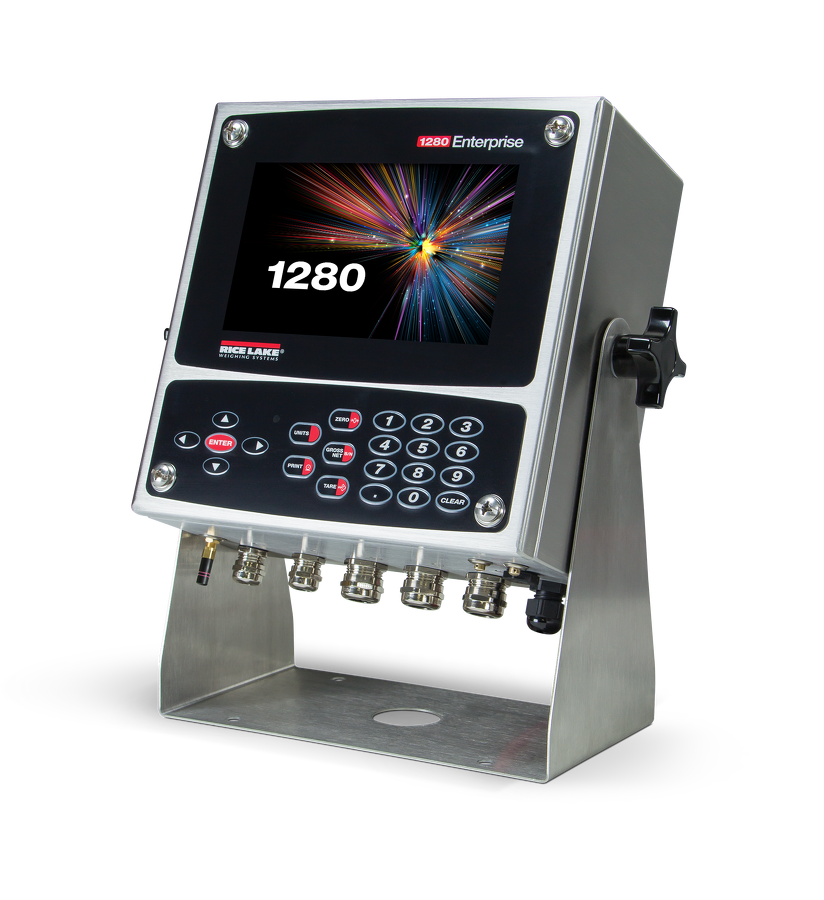

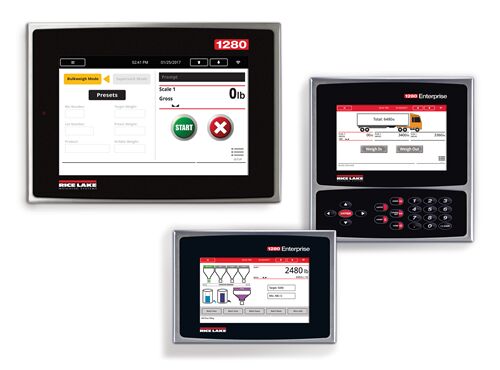

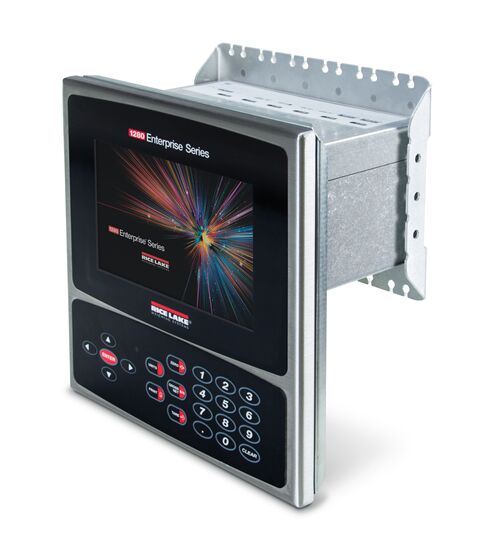

  • Three different enclosure types: universal with tilt stand, panel mount and wall mount

• Specifications

  Power:
  AC voltages: 100 to 240 VAC; 50/60 Hz
  DC voltages: 11 to 30 VDC
  Power Consumption:
  60W
  Excitation Voltage:
  10 VDC (+/- 5 VDC)
  16 × 350 ohm or 32 × 700 ohm load cells per A/D card
  Analog Signal Input Range:
  -60 mV to 60 mV
  Analog Signal Sensitivity:
  0.3 μV/graduation minimum at 7.5 Hz to 120 Hz
  1.0 μV/graduation recommended
  A/D Sample Rate:
  7.5 to 960 Hz, software selectable
  Resolution:
  Internal: 8,000,000 counts
  Display: 1,000,000
  System Linearity:
  ± 0.01% full scale
  Digital I/O:
  Eight I/O channels on CPU board
  Optional 24-channel I/O expansion boards
  Communication Ports:
  Port 1 & 2: Full duplex RS-232 with CTS/RTS, RS-422/485
  Baud rate: 1200 to 115200
  Port 3: USB 2.0 Device (Micro)
  USB host: (2) Type A connectors max 500 mA
  Ethernet: Wired 10/100 Auto-MDX
  Ethernet: Wireless 802.11 b/g/n 2.4GHz
  Onboard:
  Selectable filters: Three stage, Adaptive or Damping
  Embedded Linux® OS
  8 GB eMMC (system use)
  1 GB DDR3 RAM
  460 MB onboard database (SQLite) storage
  Up to 32 GB micro SD card (sold separately)
  Display:
  Seven-inch, 800 × 480 pixel, 500 or 1,000 NIT
  Twelve-inch, 1280 × 800 pixel, 1,500 NIT
  Keys/Buttons:
  22-key membrane panel, tactile buttons, on-screen keyboard for text and numeric entry, USB port for flash drive, keyboard and printer
  Temperature Range:
  Certified: 14 °F to 104 °F (-10 °C to 40 °C)
  Operating: -4 °F to 131 °F (-20 °C to 55 °C)
  Rating/Material:
  Universal: IP69K
  Wall Mount: IP66
  Panel Mount: IP69K, NEMA Type 4X and 12
  Stainless steel 304 enclosure
  Weight:
  Universal enclosure: 11 lb (4.9 kg)
  Panel mount enclosure: 8 lb (3.6 kg)
  Wall mount enclosure: 23 lb (10.4 kg)
  Panel mount 7 in touch-only: 7 lb (3.1 kg)
  Panel mount 12 in touch-only: 10 lb (4.5 kg)
  EMC Immunity:
  10 V/m




• Approvals

  • NTEP CC 15-001/Class III/IIIL 10,000d
  • Measurement Canada AM-5980C,
  • Class III/III HD 10,000d
  • OIML R76/2006-A-NL1-19.23
  • Class III/IIII 10,000d
  • EU Test Certificate TC8596
  • UL/cUL Listed (Universal, Wall Mount)
  • UL/cUL Recognized (Panel Mount)
  • CE Marked
