GAM Series

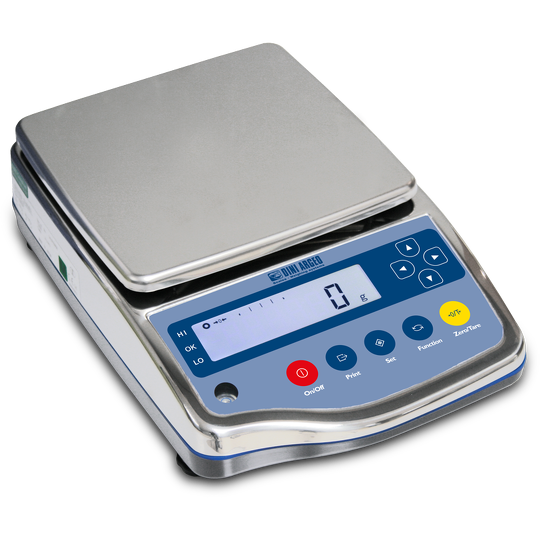

IP65 high precision scales, suitable for laboratory and industrial use. The completely stainaless steel structure makes this scale suitable for the environments with strict hygiene requirements.

Availabile Capacities(g): from 320 to 15000.

Available on Indent Order

• Main Features

  • High contrast backlit display.
  • Splashproof membrane keypad.
  • Splashproof constuction, upper structure completely in stainless steel.

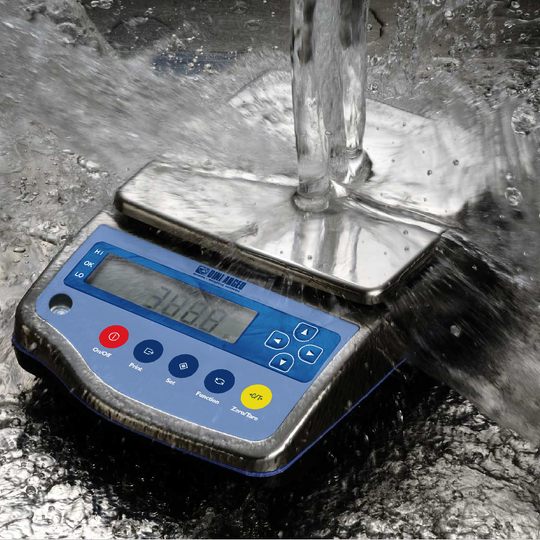

  • Overall IP65 protection.
  • Weight detection through tuning fork system.
  • Level and adjustable foot assembly.
  • Power supply: standard fitted with 230 Vac power adapter or optional kit for power supply through 4 AA batteries.
  • Operating temperature +0°C...+40°C, non-condensing relative humidity 80%.
  • RS232/c port for connection to PC, 3590E series indicator or printer.

• Standard Functions

  • totalisation
  • weight checking
  • counting
  • % weight
  • suspended weighing (for gravimetric measurements)
  • animals weighing
  • zeroing
  • semi-automatic tare
  • digital calibration

• Advanced Functions

  • Statistical sampling of prepackaged goods
  • Microdosing
  • Multiscale counting
  • Tolerance control
  • Wizard formulation
  • Receipts, labels printing, storage and data transmission

• Available Models

  Part Number	Class	Pan Size (mm)	Capacities
  GAM320	II	Ø 140 mm	320g x 0.01g
  GAM820	II	Ø 140 mm	820g x 0.01g
  GAM2200	II	190 x 190 mm	2200g x 0.1g
  GAM3200	II	190 x 190 mm	3200g x 0.1g
  GAM6200	II	190 x 190 mm	6200g x 0.1g
  GAM8200	II	190 x 190 mm	8200g x 0.1g
  GAM15000	II	190 x 190 mm	15000g x 1g

• Documents

  Dini GAM Brochure

  699 Kb
