GM Remote Displays

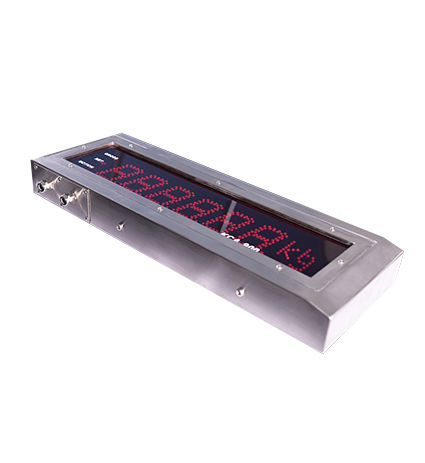

This remote display is an outdoor truck scale remote display of the highest quality with a full stainless steel body with IP65 standard, which is the world"s first ultra-light LED display that has a viewing angle of 170 degrees and is crystal clear directly under sunlight.

• Main Features

  • Stainless Steel
  • IP65 Rated
  • Double Row high intensity LED Display
  • Supports more than 30 kinds of communication protocols
  • RS232 or RS485
  • Two Versions - GM8892 - 2.5" Digit Size, GM8895 - 5" Digit Size

• GM8892 Specifications

  Power Supply
  90V ~ 260V AC 50Hz(or 60Hz)±2%
  Power Consume
  20W
  Display
  6 digits, 7 segments, Ultra bright LED
  Digit Size
  2.5"
  LED Indicators
  3 LED, Gross, Net, Motion
  Visible Angle
  10 degree to 170 degree
  Operating Temperature
  -10°c to 40°C
  Storage Temperature
  -25°C to 70°C
  Humidity
  90% R.H without dew
  IP Level
  IP65
  Dimensions with sun shelter
  582X228X200 (LXWXH)
  Dimensions without sun shelter
  578X226X76 (LXWXH)
  Weight Approx
  8kgs
  Certification
  CE
  Enclosure
  Stainless steel
  Communication
  RS485/RS232




• GM8895 Specifications

  Power Supply
  90V ~ 260V AC 50Hz(or 60Hz)±2%
  Power Consume
  40W
  Display
  6 digits, 7 segments, Ultra bright LED
  Digit Size
  5"
  LED Indicators
  3 LED, Gross, Net, Motion
  Visible Angle
  10 degree to 170 degree
  Operating Temperature
  -10°c to 40°C
  Storage Temperature
  -25°C to 70°C
  Humidity
  90% R.H without dew
  IP Level
  IP65
  Dimensions with sun shelter
  905X295X258 (LXWXH)
  Dimensions without sun shelter
  900X280X107 (LXWXH)
  Weight Approx
  16kgs
  Certification
  CE
  Enclosure
  Stainless steel
  Communication
  RS485/RS232




• Available Models

  Part Number	Description
  GM8892-2.5	2.5" LED S/S Remote Display
  GM8895-5	5" LED S/S Remote Display

• Documents

  GM Remote Display

  2 Mb

  GM8892 Remote Display User Manual(1)

  2 Mb
