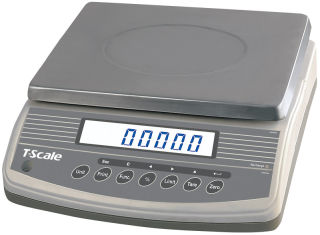

T-Scale QHW+ High Capacity High Resolution Balance

The T Scale QHW is a high resolution scale with a rechargeable battery.

• Main Features

  • 24mm LCD Display
  • 60,000 divisions
  • Rechargeable Battery up to 70 hours of continuous use

• Specifications

  Display
  24mm LCD display white LED backlight
  Capacities
  3kg to 30kg
  Pan Size
  230mm x 300mm
  Keyboard
  7 keys (membrane keyboard)
  Housing
  ABS plastic
  Max Divisions
  30,000/60,000d
  ADC
  Sigma Delta
  ADC update
  >1/10 Second
  Operating Temp
  -10℃~+40℃
  Power
  AC Adaptor (12V/500mA) Rechargeable Battery (6V/4Ah)

• Available Models

  Part Number	Capacities
  QHW+-6K	6 kg x 0.1 g
  QHW+-15K	15 kg x 0.2 g
  QHW+-30K	30 kg x 0.5 g

• Documents

  QHW Datasheet

  1 Mb
